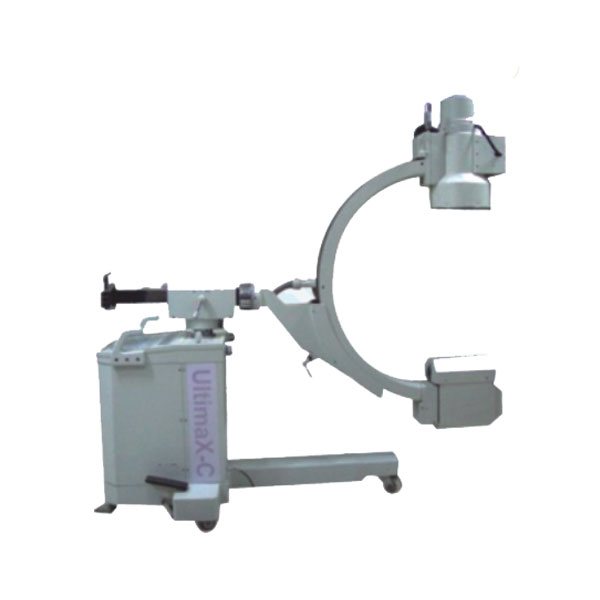

With utmost care and abiding by the Performance Standard in Imaging, ULTIMAX HIGH FREQUENCY C-ARM has been developed with a 1k x1k high resolution CCD camera 1PM (Image Processing Module) and Dual B/W Specialized 19′ Medical Monitor
TECHNICAL SPECIFICATIONS
|
(A) |
IMAGE INTENSIFIER |
|
|
1. |
Image Intensifying Tube |
9 Inches, Triple Field (Imported) Normal=9”,Zoom1=6”,Zoom2=4.5” |
|
2. |
Nominal Entrance Field Size |
23cm |
|
3. |
Output Image Diameter |
20mm |
|
4. |
CCD Camera |
High Resolution CCD Camera (Imported). ½” Size |
|
5. |
Monitor |
2 Nos. 17”, Monitor along with a trolley |
|
(B) |
C-ARM MOBILE STAND |
|
|
1. |
Rotation |
± 180 Degrees |
|
2. |
Motorized Up/Down |
400mm |
|
3. |
Horizontal Travel |
200mm |
|
4. |
Arc Orbital Movement |
115 Degrees |
|
5. |
Wig Wag |
± 12.5 Degrees |
|
© |
X-RAY GENERATOR (Imported) |
|
|
1.(a) |
Tube Head (Imported Monoblock) |
40 KHz Stationary Anode Tube of focal spot 0.6mm (FLR) & 1.5mm (RAD) |
|
(b) |
Max. Voltage |
110 KV |
|
© |
Fluoroscopic mA |
0.1-3mA |
|
(d) |
Radiographic mA |
30mA |
|
2. |
INVERTOR |
AC/DC Convertor for HF X-Ray Generator |
|
(a) |
Mains Voltage |
230V AC ± 10% 50 Hz |
|
(b) |
Max. Output Power |
3.5KW |
|
|
CONTROL |
|
|
1. |
Digital Display of |
|
|
2. |
Technical Selection |
Fluoro & Rad. Mode Selection |
|
3. |
Radiographic Timer |
An inbuilt Rad. Timer enables to select mAs in steps upto 240mAs max. |
|
4. |
Fluoroscopic Timer |
5 minutes cumulative Timer with Buzzer |
|
5. |
Fluoro mA |
0.1-3mA, continuously variable |
|
6. |
Image Orientation on Monitor |
Indicators for left/right, up/down Image Rotation is provided on Control Panel |
|
7. |
Monoblock Temp. Sensor |
Thermal Safety cut off provided. |
|
8. |
Self Diagnostics |
Various LED’s indicate the faults. |
|
9. |
Power Supply |
Single Phase 230V, ± 10% AC, 50Hz (Equipment Operatable on Standard 15 Ampere Power Socket) |
|
10. |
Servo Voltage Stabilizer |
A Servo Voltage Stabilizer with suitable rating is Provided. |
|
11. |
Automatic Brightness Control |
Provided |
|
(D) |
DIGITAL IMAGE MEMORY SYSTEMS |
|
|
1. |
32 Image Storage Memory with USB facility (can store unlimited images). |
